Hospital Medical Personnel and Asset Visibility System

AVANTE Nodal and RTLS Personnel and Asset Visibility System for Critical Medical Equipment and Assets

SYSTEM CONFIGURATION:

  • Free 60-Day Trial Configuration (starting May 1, 2008)
  • ZONER™-ASID(Asset Tag): 30 ASID
  • RELAYER™-RTLS(For Forming a Real-Time Locating System): 4 RELAYER-RTLS
  • ACCESS-TRAKKER® SOFTWARE
  • INSTALLATION AND VERIFICATION
  • ZONER™-GPID(Optional for General Personnel Badge): 10 GPID
  • ZONER™-SSID(Optional for Visitors and Security Personnel Badge): 10 SSID
  • RELAYER™-Nodal(Optional to provide real-time visibility of “IN-OUT” status by monitoring all access points): 4 RELAYER-Nodal (Access Points)

View video on AVANTE Personnel and Asset Visibility Solution

Ideal for:

The system and communications are IP-based and robust with built-in redundancy:

  • The RTLS is IP-based and data can be monitored from anywhere and anytime.
  • Communications of exceptions are normally fed directly and synchronized with other security systems but also report independently whenever there is exception.
  • Monitoring software uses .NET web-based framework to provide seamless and easy integration and communication via web services with legacy and other security systems.
  • Additional safety feature of on-demand real-time reporting button is a common feature on all personnel RFID ZONER™ badges in case of emergency and need of additional help.
  • They system works 24/7/365 independent of other security systems. The RFID ZONER™ tags and badges with batteries last at least 5 years.
  • AVANTE also provides backup monitoring data center services for redundancy and archives that  data for customers needing such information.

AVANTE PERSONNEL AND ASSET VISIBILITY SYSTEM FOR HOSPITALS AND MEDICAL CENTERS

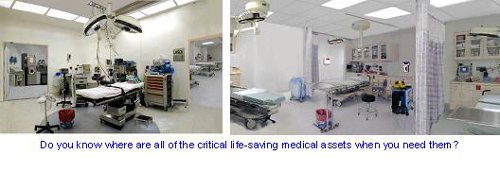

Effective asset availability management is critical for the success of hospitals and medical centers. The ability to locate and utilize life-saving hospital equipment and medical assets is one of the key controls that may reduce overall medical care costs. Effective asset management starts with visibility by real-time tracking of important medical equipment and hospital assets.

How can AVANTE Real-Time Locating System and Personnel-Asset Visibility System benefit hospitals and medical centers?

  • Documented inventory and utilization of important and critical medical assets
  • Detailed control and utilization on leased and owned assets
  • Dramatically reduces manual tracking process and misplaced assets
  • Ability to associate asset and staff relationship from the arrival at dock to disposure
  • Real-time hospital asset and medical equipment tracking for optimizing asset utilization

(View video on AVANTE Real- Time Asset Tracking System and Solution)

The principle and utility of this patented technology is simple to use and understand:

    A miniature and low profile RFID ZONER™ tag with temperature, motion and other sensors is attached directly with tamper-destructive adhesive or seal onto each piece of equipment and asset to be monitored and tracked. Staff and security personnel are encouraged to wear the RFID ZONER™ badges. Each RFID ZONER™ tag transmits and communicates to the monitoring RTLS. A grid of real-time locating RFID RELAYER™ readers is installed around the perimeter of the area to be protected. Exception rules based on movement, position, temperature or other sensor data, and who among the authorized personnel is around are used to provide exception reporting in real-time. All data collected may be viewed in synchronization with the IP-video or other CCTV monitoring system. The system provides an alert and alarm well when removed out of operation zone as well as real-time locations of the assets within the monitored areas.
AVANTE NODAL & RTLS REAL-TIME VISIBILITY FOR CRITICAL MEDICAL EQUIPMENT AND ASSETS WITH OPTIONAL VISIBILITY FOR STAFF AND PATIENTS
System Configuration Function & Characteristics
ZONER™-ASID(Asset Tag)
  • Place on each major piece of medical equipment
  • Place on critical hospital and medical assets
  • Beacon every 5 seconds to provide real-time location at all times
  • Sensors for real-time removal alert
RELAYER™-RTLS(For Forming a Real-Time Locating System)
  • Real-time locating reader-monitor placed in 100 ft grid (4 to a typical data center)
  • Optional real-time locating reader-monitor placed in 100 ft grids throughout the facility
  • Received signal strength zoning to provide real-time location (patent-pending)
  • IP-based to provide visibility so that those need to know can be located anywhere
ACCESS-TRAKKER® SOFTWARE
  • IP-based access control and real-time locating software
  • Built on Microsoft .NET framework and SQL-Server database for easy web service interfacing with IP-based video and other systems
Installation and Verification
  • Estimated costs for installing all reader-monitor units
  • Test and verification of system
ZONER™-GPID(Optional for General Personnel Badge)
  • Personnel badges for employees
  • Secure passive RFID for access control + active RFID for personnel visibility
  • Beacon every second to provide nodal visibility at critical access points
  • On-demand and/or upon-command real-time zoning in case of emergency
ZONER™-SSID(Optional for Visitors & Security Personnel Badge)
  • Badges for visitors and security personnel
  • Secure passive RFID for access control + active RFID for personnel visibility
  • Beacon at low power signal strength every second to provide nodal visibility + high power every five seconds to provide RTLS positions
  • Real-time location of visitors for security management and safety for the security personnel
RELAYER™-Nodal(Optional to provide real-time visibility of “IN-OUT” status by monitoring all access points)
  • Nodal access points monitoring of “in-and-out” activities to provide real-time visibility all tagged assets and personnel
  • Each access point is equipped with a pair of nodal reader-monitors to provide 100% accurate record of personnel and/or assets in or out of the facilities at anytime
  • IP-based to provide visibility for need-to-know reporting anywhere
TYPICAL HOSPITAL CRITICAL ASSETS RTLS MONITORING SYSTEM COST SCHEDULE
TYPICAL CONFIGURATION Costs
i. 300 ASID (For critical medical equipment & assets) (Call for pricing)
ii. 12 RELAYER-RTLS (Monitoring system for 3 floors) (Call for pricing)
iii. Software (Call for pricing)
iv. Installation & Verification (Call for pricing)
BASIC TOTAL SYSTEM COSTS Less than $60,000
v. 300 GPID (For medical staff) (Call for pricing)
vi. 50 SSID (For security staff) (Call for pricing)
vii. 10 RELAYER-Nodal (Access Points) (Call for pricing)
viii. Installation & Verification (Call for pricing)
ADDITIONAL AND OPTIONAL SYSTEM COSTS Less than $40,000
TOTAL FULL VISIBILITY SYSTEM COSTS Less than $100,000
